Salco 4590CV

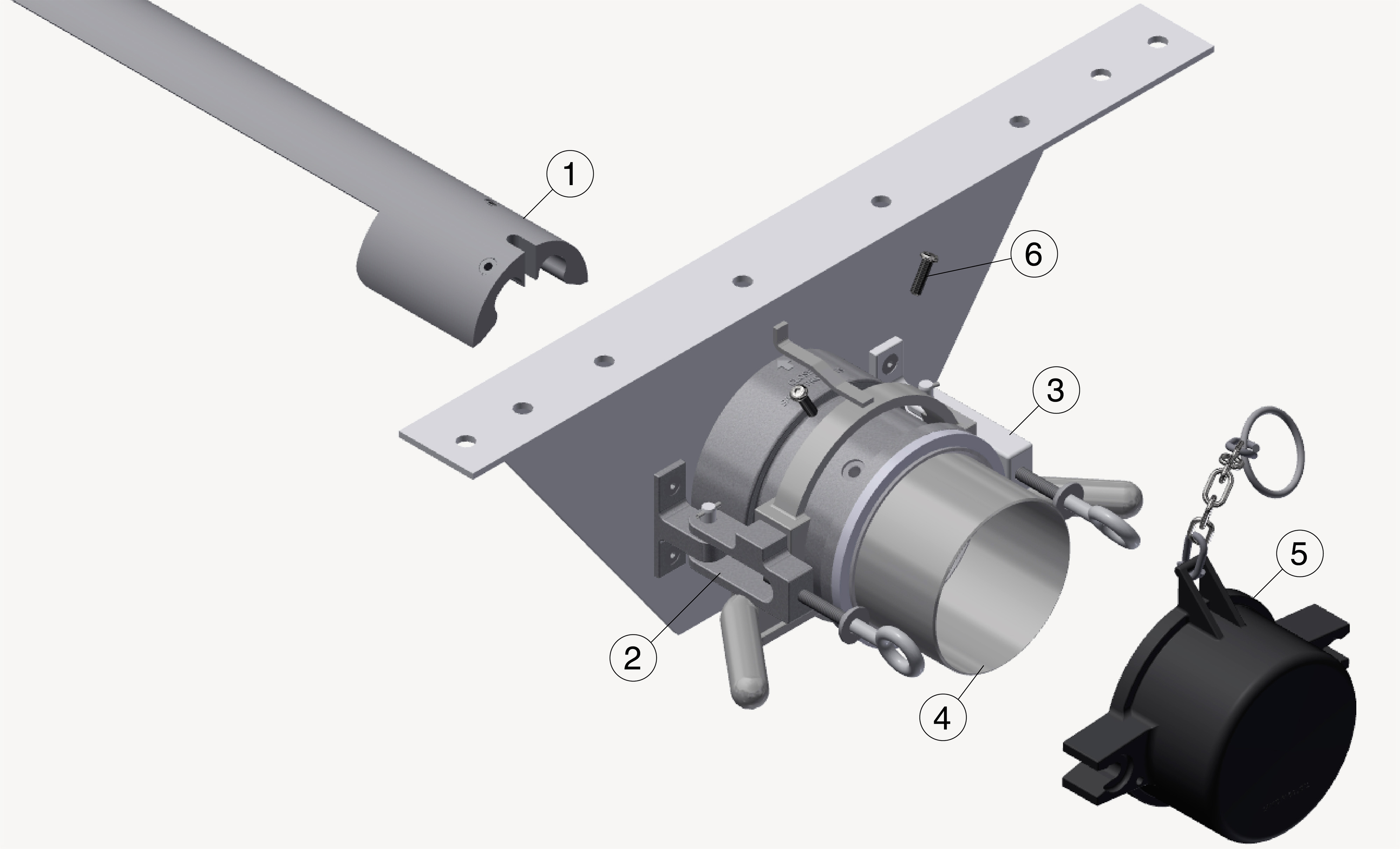

4590 Outlet Gate
Replacement Parts
Click on gate part number to view more detail
|
Number |
Description |
Part Number |
| 1 | Tube Control Assembly | SP111CTUA |
| 2 | Left Hand Pivot Arm Assembly | RG111LPA |
| 3 | Right Hand Pivot Arm Assembly | RG111RPA |
| 4 | Reconditioned End Adapter Assembly | RC111EAM |
|
Number |
Description |
Part Number |
| 5 | Outlet Cap Assembly ABS | RP205BSCA |
| 6 | Tamper Proof Securement 3/8" x 1¼" | RTHBTRSS18 |
| 7 | Label (not shown) | B13168 |
| 8 | Gate Gasket (not shown) | GGTR111 |
| Complete Gate Assembly | RG11100AT |
 |

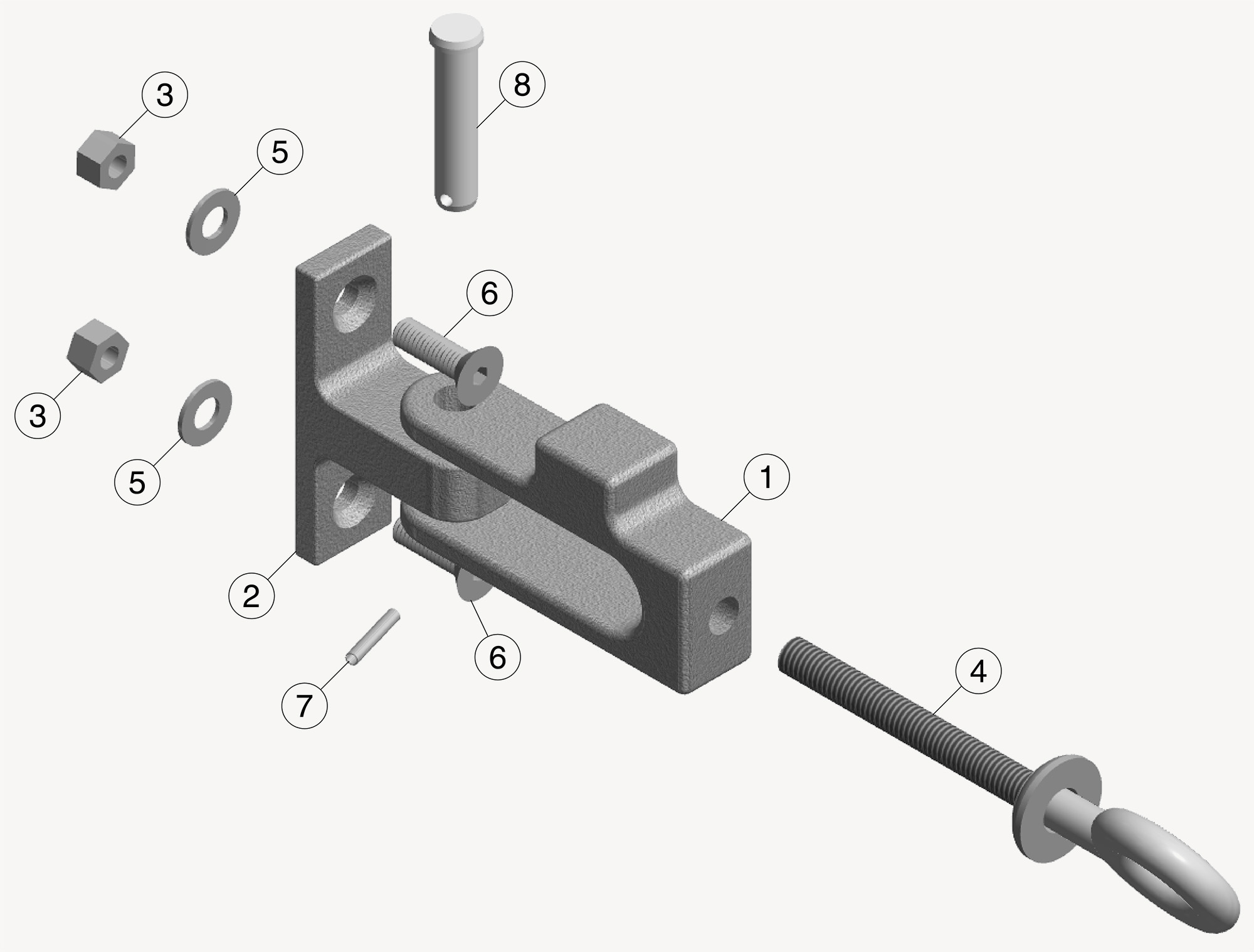

Left / Right Hand Pivot Arm AssemblyReplacement PartsClick on gate part number to view more detail |
|
Number |
Description |
Part Number |
| 1 | Pivot Arm | EA111PAB |
| 2 | Gate Brackets | EA111ACB |
| 3 | Locknut 3/8” | EA111N |
| 4 | Eyebolt Assembly (teflon coated) | EB205TA |
| 5 | Washer 3/8” | KL103FW |
| 6 | Countersunk Bolt 3/8” x 1¼” | SHC381S |
| 7 | Roll Pin 5/32” | T532RP |
| 8 | Clevis Pin ½” x 2¼” | YSD225CP |
 |
End Adapter AssemblyReplacement PartsClick on gate part number to view more detail |
|
Number |
Description |
Part Number |
| 1 | U-Cup Gasket | EA111FDAU |
| 2 | Gasket 6 5/8” x 7 5/8” Vinyl | ONG1115 |
| 3 | Locknut 3/8” | EA111N |
| 4 | Bolt 3/8” x 1 3/4” | EA111B |
| 5 | Washer 3/8” | KL103FW |
| 6 | Handle Stop | A14771 |
